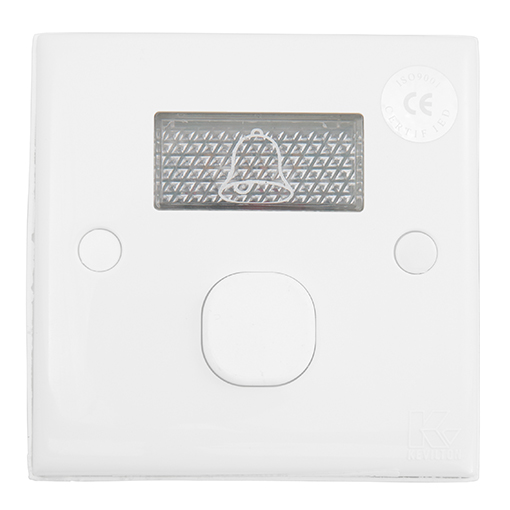

BELL PUSH WITH INDICATOR (WEATHER-PROOF)
| General Data | |
| Warranty | Lifetime
|
| Technical data | |
| Key Features
|
Integral push button covered with a weather protected rubber cap
|
| Embossed terminal markings on the rear housing ensure terminal identification that saves wiring time
|
|
| The front plate made from polycarbonate is of high impact strength and has fire retardant properties
|
|
| Green indicator denotes OFF position of the switch
|
|
| Both red & green indicators together denote ON position of the switch
|
|
| Weather protected rubber cap and outer seal to withstand outdoor conditions
|
|
| Rubber seals provide waterproofing
|
|
| Power Supply | |
| Rated Voltage | 250V AC
|
| Rated Current | 10A
|
| Dimensions | |
| Plate Size (H*W) | 86mm x 86mm
|
| Terminal Space Capacities | 2 x 1.5mm2
|
| Depth | 21mm
|
| Mounting Centers | 60.3mm
|
| Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
| Material Overview | |
| Plastic | Polycarbonate and Nylon-FR grade
|
| Metal | Brass, Silver on the contact points
|
| Rubber | Weather Protected material
|
