LED CEILING LAMPS
| General Data | |
| Warranty | 24 Months
|
| Type / Mode | Sunk / Surface (Round & Square)
|
| Life Span (Hrs) |
25000
|
| Product details |
||||||||
| Wattage
Cap Type |
Sunk
|
4W
|
6W
|
9W
|
12W
|
15W
|
18W
|
24W
|
| Surface
|
-
|
6W
|
-
|
12W
|
-
|
18W
|
-
|
|
| Power Supply
|
220 - 240V AC / 50Hz
|
|||||||
| Colour Temperature (K)
|
6000 - Daylight
|
|||||||
| Lifetime(hrs)
|
25,000
|
|||||||
| Equal wattage of GLS lamp
|
40W
|
60W
|
75W
|
100W
|
100W
|
100W
|
100W
|
|

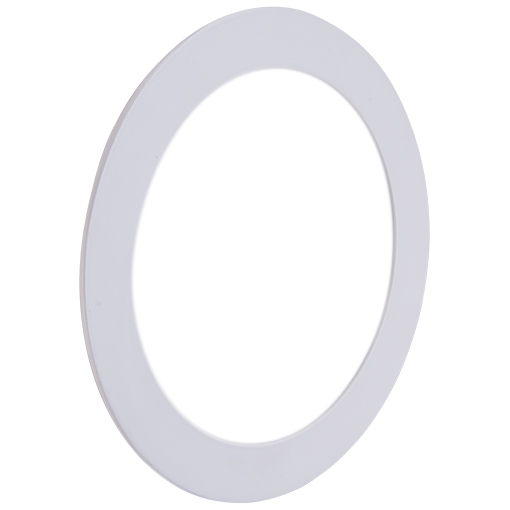

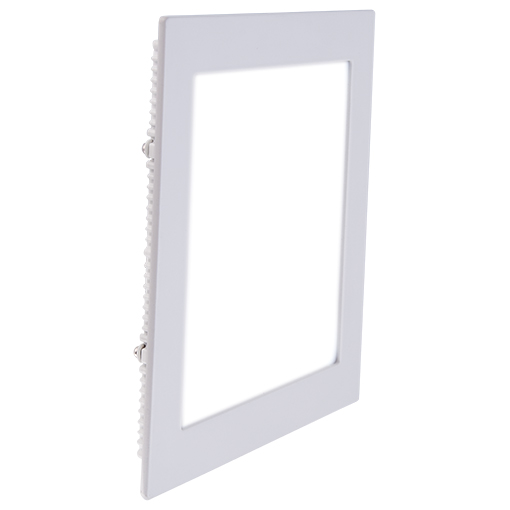

| Specific Technical Data of Sunk Type (Round and Square) |
|||||||
| Rated Current(mA) - Input AC | 35
|
62
|
102
|
120
|
140
|
170
|
230
|
| Rated Lu. Output(lm) Round / Square | 160
|
360
|
460 / 585
|
880 / 840
|
1120 / 1020
|
1445 / 1340
|
1920 / 1800
|
| Efficacy(lm/W) Round / Square | 40
|
60
|
51/65
|
73/70
|
75/68
|
80/74
|
80/75
|

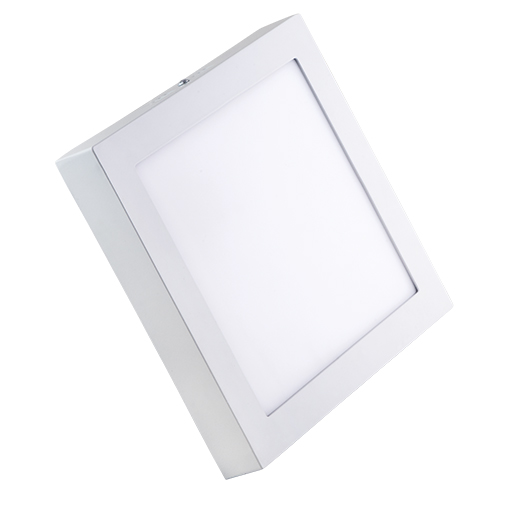

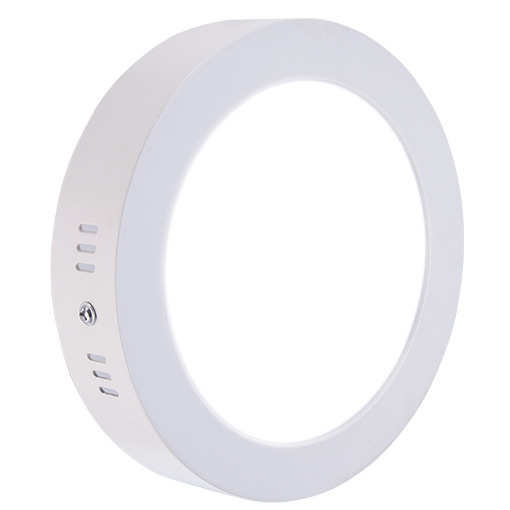

| Specific Technical Data of Surface Type (Round and Square) |
|||||||
| Rated Current(mA) - Input AC | -
|
63
|
-
|
120
|
- | 170
|
-
|
| Rated Lu. Output(lm) Round / Square | -
|
410
|
-
|
820 / 840
|
-
|
1420 / 1380
|
-
|
| Efficacy(lm/W) Round / Square | -
|
68
|
-
|
68/70
|
- | 79/77
|
-
|
| Technical Data of Driver Circuit |
|||||||
| Rated DC Output (V) | 9 - 25
|
24 - 40
|
36 - 60
|
55 - 80
|
|||
| Rated AC Input (V) | 160 - 265
|
||||||
| Rated Output Current(mA) | 300 ± 5
|
||||||
| Temperature Range (°C) | 0 - 80
|
||||||
| General Data | |
| Warranty | 24 Months
|
| Type / Mode | Sunk / Surface (Round & Square)
|
| Life Span (Hrs) |
25000
|
| Features | |
| Durable
|
|
| Lower energy consumption
|
|
| RoHS Compliant
|
|
| Very low heat emission
|
|
| High lumen output
|
|
| Surge supression resistor (Varistor)
|
|
| Can operate on a wide voltage range of 160V AC - 265V AC
|
|
| Terminal Connector attached for easy and firm connection of the wire
|
|
| Instructions
|
|
| Use only for indoor applications
|
|
| Do not use this LED with dimming circuits / switches | |
| Do not use in ambient temperatures below 0°C and above 45°C or in
damp or moist areas |
|
